i-port

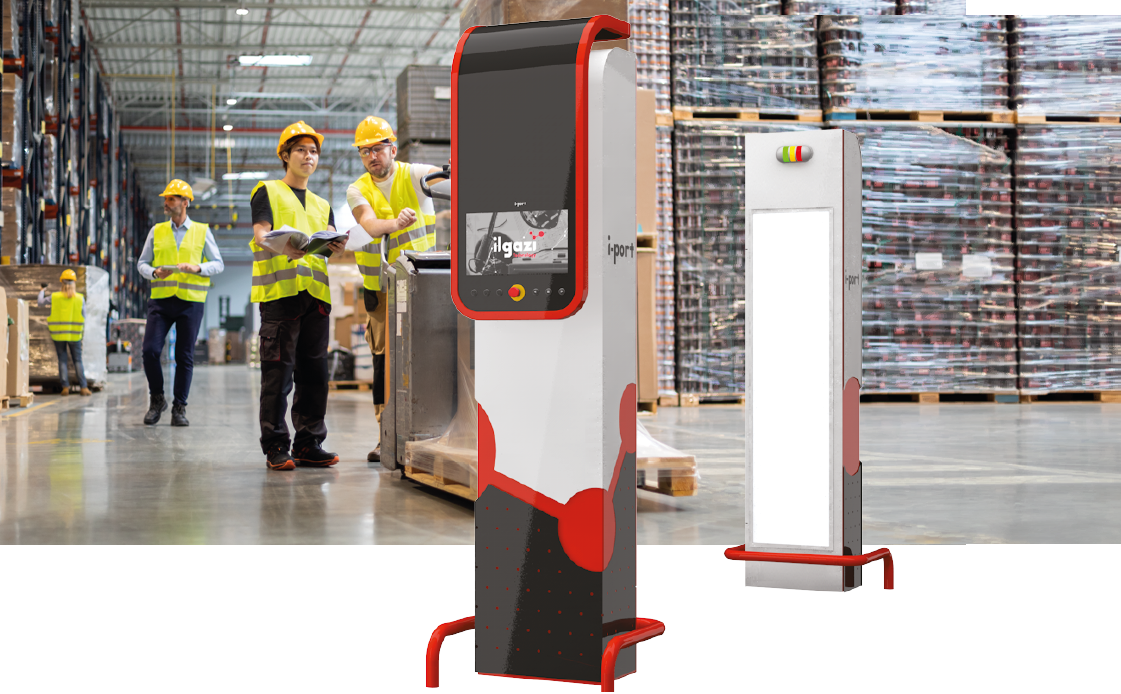

Fast and reliable RAIN RFID Portal Reader Mass identification and tracking of items at loading docks and logistic gates
Plug and
Play
RFID Hight Reading
Performance
Small and Compact
Design
15.6 in
Touch Screen
Introduction
The i-port reader is designed for use where a huge number of RFID tagged items require identification and tracking quickly and accurately.
Independent dual units can be installed on loading docks and gates and enable tracking of items in the entire process and various applications.
Built-in computer and large touch screen allow easy integration with existing data management and workflow.
Further Details
-
Technical Features
Protocol EPC Class1 Gen2/ISO 18000-6C Frequency Range 860 - 960 MHz Max TX Power 33 dBm RX Sensitivity typ. -80 Antennas 4 x Circular polarized Read Rate 800 tags / second Communication Ethernet, WiFi Power Input 110 - 230 VAC Power Consumption 120 W max Touch Screen 15.6 in Dimensions 1100 x 3000 x 2000 mm / customizabler Max Portal Width 6 m Operating Temperature -20°C to 60°C -
Overview
Frequency Band UHF 860-960 MHz International Standards ISO/IEC 18000-6C
EPC Global Class 1 Gen 2Industry Logistics
Industrial Applications
Manufacturing
Apparel and FashionAplication Textile
Supply Chanin Management
Warehouse Management
Package Tracking
Pharmaceutical
Healthcare -
Key Features
Fast and accurate reading Built-in computer and touch screen Easy integration Long reading distance Ethernet, WiFi connectivity Competitive pricing
Download Datasheet
